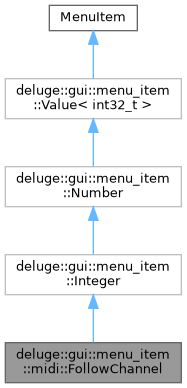

Inheritance diagram for deluge::gui::menu_item::midi::FollowChannel:

[legend]

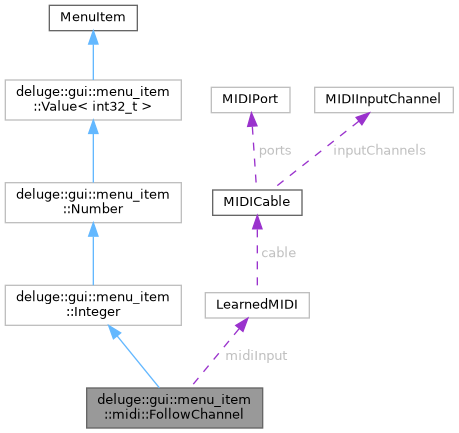

Collaboration diagram for deluge::gui::menu_item::midi::FollowChannel:

[legend]

Public Member Functions
	FollowChannel (l10n::String newName, l10n::String title, MIDIFollowChannelType type)

void	readCurrentValue () override
	Like readValueAgain, but does not redraw.

void	writeCurrentValue () override

int32_t	getMaxValue () const override

bool	allowsLearnMode () override
	Used by SoundEditor to determine if the current menu item can accept MIDI learning.

void	drawInteger (int32_t textWidth, int32_t textHeight, int32_t yPixel) override

void	drawValue () override

void	selectEncoderAction (int32_t offset) override
	Handle select encoder movement.

void	unlearnAction ()
	Unlearn the parameter controlled by this menu.

bool	learnNoteOn (MIDICable &cable, int32_t channel, int32_t noteCode)
	Attempt to bind this menu item to a note code.

void	learnCC (MIDICable &cable, int32_t channel, int32_t ccNumber, int32_t value)

void	renderDisplay ()

Public Member Functions inherited from deluge::gui::menu_item::Integer
void	selectEncoderAction (int32_t offset) override
	Handle select encoder movement.

Public Member Functions inherited from deluge::gui::menu_item::Number
void	drawBar (int32_t yTop, int32_t marginL, int32_t marginR=-1)

void	renderInHorizontalMenu (int32_t startX, int32_t width, int32_t startY, int32_t height) override

Public Member Functions inherited from deluge::gui::menu_item::Value< int32_t >
	MenuItem ()

	MenuItem (deluge::l10n::String newName, deluge::l10n::String newTitle=deluge::l10n::String::EMPTY_STRING)

	MenuItem (const MenuItem &other)=delete

	MenuItem (const MenuItem &&other)=delete

void	beginSession (MenuItem *navigatedBackwardFrom) override
	Begin an editing session with this menu item.

void	selectEncoderAction (int32_t offset) override
	Handle select encoder movement.

void	readValueAgain () override
	Re-read the value from the system and redraw the display to match.

bool	selectEncoderActionEditsInstrument () final
	Used by the sound editor to mark the current instrument as edited when the select encoder is scrolled.

void	setValue (int32_t value)

void	setValue (E value)

int32_t	getValue ()

E	getValue ()

	MenuItem ()

	MenuItem (deluge::l10n::String newName, deluge::l10n::String newTitle=deluge::l10n::String::EMPTY_STRING)

	MenuItem (const MenuItem &other)=delete

	MenuItem (const MenuItem &&other)=delete

Public Member Functions inherited from MenuItem
	MenuItem (deluge::l10n::String newName, deluge::l10n::String newTitle=deluge::l10n::String::EMPTY_STRING)

	MenuItem (const MenuItem &other)=delete

	MenuItem (const MenuItem &&other)=delete

MenuItem &	operator= (const MenuItem &other)=delete

MenuItem &	operator= (const MenuItem &&other)=delete

virtual ActionResult	buttonAction (deluge::hid::Button b, bool on, bool inCardRoutine)
	Handle an arbitrary button.

virtual void	horizontalEncoderAction (int32_t offset)
	Handle horizontal encoder movement.

virtual void	verticalEncoderAction (int32_t offset)
	Handle vertical encoder movement.

virtual MenuItem *	selectButtonPress ()
	Handle a select button press.

virtual ActionResult	timerCallback ()
	Handle a TimerName::UI_SPECIFIC event.

virtual bool	usesAffectEntire ()
	Claim support for Kit AFFECT_ENTIRE editing.

virtual MenuPermission	checkPermissionToBeginSession (ModControllableAudio modControllable, int32_t whichThing, MultiRange *currentRange)
	Double-check that this MenuItem will work with the currently selected sound range.

virtual uint8_t	getIndexOfPatchedParamToBlink ()

virtual deluge::modulation::params::Kind	getParamKind ()

virtual uint32_t	getParamIndex ()

virtual uint8_t	shouldBlinkPatchingSourceShortcut (PatchSource s, uint8_t *colour)

virtual MenuItem *	patchingSourceShortcutPress (PatchSource s, bool previousPressStillActive=false)
	Action to take when a source shortcut is pressed.

virtual void	learnKnob (MIDICable *cable, int32_t whichKnob, int32_t modKnobMode, int32_t midiChannel)

virtual void	learnProgramChange (MIDICable &cable, int32_t channel, int32_t programNumber)

virtual bool	shouldBlinkLearnLed ()

virtual bool	isRangeDependent ()
	Returns true if this parameter is only relevant to some note ranges.

virtual void	renderOLED ()
	Root rendering routine for OLED.

virtual std::string_view	getTitle () const
	Get the title to be used when rendering on OLED, both as a deluge::gui::menu_item::Submenu and when displaying ourselves (using the default renderOLED implementation).

virtual uint8_t	shouldDrawDotOnName ()
	Get the "draw dot state".

virtual void	drawName ()
	Draw the name we want to use when selecting this in a deluge::gui::menu_item::Submenu to the 7SEG.

virtual std::string_view	getName () const
	Get the actual name for use on OLED for deluge::gui::menu_item::Submenu s.

virtual void	getColumnLabel (StringBuf &label)
	Get the name for use on horizontal menus.

virtual bool	isRelevant (ModControllableAudio *modControllable, int32_t whichThing)
	Check if this MenuItem should show up in a containing deluge::gui::menu_item::Submenu.

virtual bool	shouldEnterSubmenu ()
	Check if selecting this menu item (with select encoder) should enter a submenu.

virtual int32_t	getSubmenuItemTypeRenderLength ()
	Handle rendering of submenu item types.

virtual int32_t	getSubmenuItemTypeRenderIconStart ()

virtual void	renderSubmenuItemTypeForOled (int32_t yPixel)

virtual bool	isSubmenu ()

virtual void	setupNumberEditor ()

virtual void	updatePadLights ()

virtual void	updateAutomationViewParameter ()

void	renderColumnLabel (int32_t startX, int32_t width, int32_t startY)

Private Attributes
MIDIFollowChannelType	channelType

LearnedMIDI &	midiInput

Additional Inherited Members
static void	drawItemsForOled (std::span< std::string_view > options, int32_t selectedOption, int32_t offset=0)
	Internal helper which can draw the standard deluge::gui::menu_item::Submenu layout.

deluge::l10n::String	title
	Can get overridden by getTitle(). Actual max num chars for OLED display is 14.

const deluge::l10n::String	name
	Default name for use on OLED for deluge::gui::menu_item::Submenu s.

Protected Member Functions inherited from deluge::gui::menu_item::Integer
virtual int32_t	getDisplayValue ()

virtual const char *	getUnit ()

void	drawPixelsForOled ()
	Paints the pixels below the standard title block.

void	drawValue () override

Protected Member Functions inherited from deluge::gui::menu_item::Number
virtual int32_t	getMinValue () const

Member Function Documentation

◆ allowsLearnMode()

bool deluge::gui::menu_item::midi::FollowChannel::allowsLearnMode ( )

inlineoverridevirtual

Used by SoundEditor to determine if the current menu item can accept MIDI learning.

Reimplemented from MenuItem.

◆ drawInteger()

void deluge::gui::menu_item::midi::FollowChannel::drawInteger	(	int32_t	textWidth,
		int32_t	textHeight,
		int32_t	yPixel )

inlineoverridevirtual

Reimplemented from deluge::gui::menu_item::Integer.

◆ drawValue()

void deluge::gui::menu_item::midi::FollowChannel::drawValue ( )

inlineoverridevirtual

Implements deluge::gui::menu_item::Value< int32_t >.

◆ getMaxValue()

int32_t deluge::gui::menu_item::midi::FollowChannel::getMaxValue ( ) const

inlinenodiscardoverridevirtual

Implements deluge::gui::menu_item::Number.

◆ learnCC()

void deluge::gui::menu_item::midi::FollowChannel::learnCC	(	MIDICable &	cable,
		int32_t	channel,
		int32_t	ccNumber,
		int32_t	value )

inlinevirtual

Reimplemented from MenuItem.

◆ learnNoteOn()

bool deluge::gui::menu_item::midi::FollowChannel::learnNoteOn	(	MIDICable &	cable,
		int32_t	channel,
		int32_t	noteCode )

inlinevirtual

Attempt to bind this menu item to a note code.

Returns: True if the learn succeeded and the feature controlled by this menu item will now be bound to a MIDI note, false otherwise.

Reimplemented from MenuItem.

◆ readCurrentValue()

void deluge::gui::menu_item::midi::FollowChannel::readCurrentValue ( )

inlineoverridevirtual

Like readValueAgain, but does not redraw.

Reimplemented from MenuItem.

◆ selectEncoderAction()

void deluge::gui::menu_item::midi::FollowChannel::selectEncoderAction ( int32_t offset )

inlineoverridevirtual

Handle select encoder movement.

Child classes which override this should be careful to handle offsets larger than 1, as holding shift and scrolling will increase them.

Reimplemented from MenuItem.

◆ unlearnAction()

void deluge::gui::menu_item::midi::FollowChannel::unlearnAction ( )

inlinevirtual

Unlearn the parameter controlled by this menu.

Reimplemented from MenuItem.

◆ writeCurrentValue()

void deluge::gui::menu_item::midi::FollowChannel::writeCurrentValue ( )

inlineoverridevirtual

Reimplemented from deluge::gui::menu_item::Value< int32_t >.

The documentation for this class was generated from the following file:

src/deluge/gui/menu_item/midi/follow/follow_channel.h
