ModControllable Class Reference

#include <mod_controllable.h>

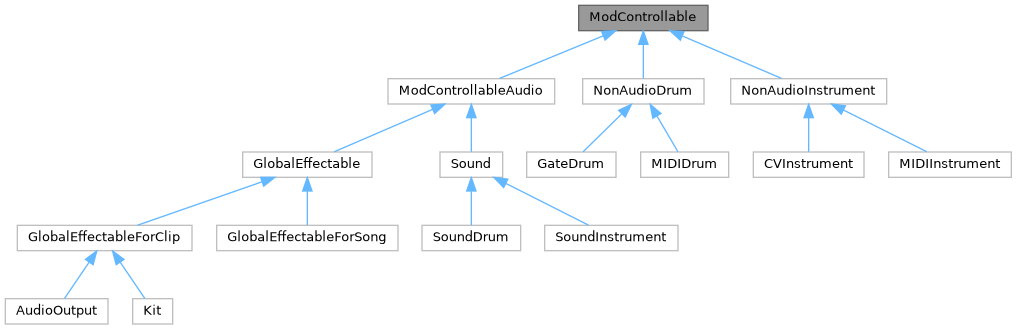

Inheritance diagram for ModControllable:

Public Member Functions
virtual bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack)
virtual void	modButtonAction (uint8_t whichModButton, bool on, ParamManagerForTimeline *paramManager)
virtual ModelStackWithAutoParam *	getParamFromModEncoder (int32_t whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation=true)
virtual ModelStackWithAutoParam *	getParamFromMIDIKnob (MIDIKnob &knob, ModelStackWithThreeMainThings *modelStack)
	Check that autoParam isn't NULL, after calling this.
virtual uint8_t *	getModKnobMode ()
virtual bool	isKit ()
virtual bool	isSong ()
virtual bool	isEditingComp ()
virtual bool	valueChangedEnoughToMatter (int32_t old_value, int32_t new_value, deluge::modulation::params::Kind kind, uint32_t paramID)
virtual int32_t	getKnobPosForNonExistentParam (int32_t whichModEncoder, ModelStackWithAutoParam *modelStack)
virtual ActionResult	modEncoderActionForNonExistentParam (int32_t offset, int32_t whichModEncoder, ModelStackWithAutoParam *modelStack)
virtual bool	allowNoteTails (ModelStackWithSoundFlags *modelStack, bool disregardSampleLoop=false)
virtual void	polyphonicExpressionEventOnChannelOrNote (int32_t newValue, int32_t expressionDimension, int32_t channelOrNoteNumber, MIDICharacteristic whichCharacteristic)
virtual void	monophonicExpressionEvent (int32_t newValue, int32_t expressionDimension)

Protected Attributes
deluge::modulation::params::Kind	unpatchedParamKind_

Detailed Description

Base class for things that the internal modulation engine knows how to control.

Responsible for reacting to the mod (gold) encoders and MIDI data (CC+MPE) as well as providing a consistent interface to the rest of the system when displaying information about the underlying modulation state.

Member Function Documentation

getParamFromMIDIKnob()

ModelStackWithAutoParam * ModControllable::getParamFromMIDIKnob ( MIDIKnob & knob, ModelStackWithThreeMainThings * modelStack )

virtual

Check that autoParam isn't NULL, after calling this.

Reimplemented in ModControllableAudio, and Sound.

Member Data Documentation

unpatchedParamKind_

deluge::modulation::params::Kind ModControllable::unpatchedParamKind_

protected

What kind of unpatched parameters this ModControllable uses.

This should be UNPATCHED_GLOBAL for GlobalEffectable and UNPATCHED_SOUND for Sound. If a new ModControllable subclass is

---

The documentation for this class was generated from the following files:

• src/deluge/model/mod_controllable/mod_controllable.h
• src/deluge/model/mod_controllable/mod_controllable.cpp
