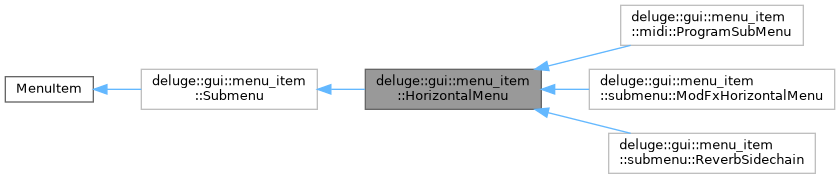

Inheritance diagram for deluge::gui::menu_item::HorizontalMenu:

[legend]

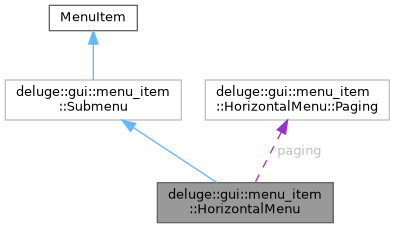

Collaboration diagram for deluge::gui::menu_item::HorizontalMenu:

[legend]

Classes
struct	Paging

Public Types
enum	Layout { FIXED , DYNAMIC }
Public Types inherited from deluge::gui::menu_item::Submenu
enum	RenderingStyle { VERTICAL , HORIZONTAL }

Public Member Functions
	HorizontalMenu (l10n::String newName, std::span< MenuItem * > newItems, Layout layout)
	HorizontalMenu (l10n::String newName, std::initializer_list< MenuItem * > newItems, Layout layout)
	HorizontalMenu (l10n::String newName, l10n::String newTitle, std::initializer_list< MenuItem * > newItems, Layout layout)
RenderingStyle	renderingStyle () const override
ActionResult	buttonAction (hid::Button b, bool on, bool inCardRoutine) override
	Handle an arbitrary button.
void	selectEncoderAction (int32_t offset) override
	Handle select encoder movement.
void	renderOLED () override
	Root rendering routine for OLED.
MenuPermission	checkPermissionToBeginSession (ModControllableAudio modControllable, int32_t whichThing, MultiRange *currentRange) override
void	beginSession (MenuItem *navigatedBackwardFrom) override
	Begin an editing session with this menu item.
void	endSession () override
	Submenu (l10n::String newName, std::initializer_list< MenuItem * > newItems)
	Submenu (l10n::String newName, std::span< MenuItem * > newItems)
	Submenu (l10n::String newName, l10n::String title, std::initializer_list< MenuItem * > newItems)
	Submenu (l10n::String newName, l10n::String title, std::span< MenuItem * > newItems)
Public Member Functions inherited from deluge::gui::menu_item::Submenu
	Submenu (l10n::String newName, std::initializer_list< MenuItem * > newItems)
	Submenu (l10n::String newName, std::span< MenuItem * > newItems)
	Submenu (l10n::String newName, l10n::String title, std::initializer_list< MenuItem * > newItems)
	Submenu (l10n::String newName, l10n::String title, std::span< MenuItem * > newItems)
void	beginSession (MenuItem *navigatedBackwardFrom=nullptr) override
	Begin an editing session with this menu item.
void	updateDisplay ()
void	selectEncoderAction (int32_t offset) override
	Handle select encoder movement.
MenuItem *	selectButtonPress () final
	Handle a select button press.
ActionResult	buttonAction (deluge::hid::Button b, bool on, bool inCardRoutine) override
	Handle an arbitrary button.
void	readValueAgain () final
	Re-read the value from the system and redraw the display to match.
void	unlearnAction () final
	Unlearn the parameter controlled by this menu.
bool	usesAffectEntire () override
	Claim support for Kit AFFECT_ENTIRE editing.
bool	allowsLearnMode () final
	Used by SoundEditor to determine if the current menu item can accept MIDI learning.
void	learnKnob (MIDICable *cable, int32_t whichKnob, int32_t modKnobMode, int32_t midiChannel) final
void	learnProgramChange (MIDICable &cable, int32_t channel, int32_t programNumber) override
bool	learnNoteOn (MIDICable &cable, int32_t channel, int32_t noteCode) final
	Attempt to bind this menu item to a note code.
void	renderInHorizontalMenu (int32_t startX, int32_t width, int32_t startY, int32_t height) override
void	drawPixelsForOled () override
	Paints the pixels below the standard title block.
void	drawSubmenuItemsForOled (std::span< MenuItem * > options, const int32_t selectedOption)
bool	wrapAround ()
	Indicates if the menu-like object should wrap-around. Destined to be virtualized. At the moment implements the legacy behaviour of wrapping on 7seg but not on OLED.
bool	isSubmenu () override
virtual bool	focusChild (const MenuItem *child)
void	updatePadLights () override
MenuItem *	patchingSourceShortcutPress (PatchSource s, bool previousPressStillActive=false) override
	Action to take when a source shortcut is pressed.
deluge::modulation::params::Kind	getParamKind () override
uint32_t	getParamIndex () override
int32_t	getColumnSpan () const override
	Get the number of occupied virtual columns in Horizontal menu.
bool	showNotification () const override
	Show a popup with the full name and value of the editing parameter at the top of Horizontal menu.
Public Member Functions inherited from MenuItem
	MenuItem (deluge::l10n::String newName, deluge::l10n::String newTitle=deluge::l10n::String::EMPTY_STRING)
	MenuItem (const MenuItem &other)=delete
	MenuItem (const MenuItem &&other)=delete
MenuItem &	operator= (const MenuItem &other)=delete
MenuItem &	operator= (const MenuItem &&other)=delete
virtual void	horizontalEncoderAction (int32_t offset)
	Handle horizontal encoder movement.
virtual void	verticalEncoderAction (int32_t offset)
	Handle vertical encoder movement.
virtual bool	selectEncoderActionEditsInstrument ()
	Used by the sound editor to mark the current instrument as edited when the select encoder is scrolled.
virtual ActionResult	timerCallback ()
	Handle a TimerName::UI_SPECIFIC event.
virtual MenuPermission	checkPermissionToBeginSession (ModControllableAudio modControllable, int32_t whichThing, MultiRange *currentRange)
	Double-check that this MenuItem will work with the currently selected sound range.
virtual void	readCurrentValue ()
	Like readValueAgain, but does not redraw.
virtual uint8_t	getIndexOfPatchedParamToBlink ()
virtual uint8_t	shouldBlinkPatchingSourceShortcut (PatchSource s, uint8_t *colour)
virtual void	learnCC (MIDICable &cable, int32_t channel, int32_t ccNumber, int32_t value)
virtual bool	shouldBlinkLearnLed ()
virtual bool	isRangeDependent ()
	Returns true if this parameter is only relevant to some note ranges.
virtual std::string_view	getTitle () const
	Get the title to be used when rendering on OLED, both as a deluge::gui::menu_item::Submenu and when displaying ourselves (using the default renderOLED implementation).
virtual uint8_t	shouldDrawDotOnName ()
	Get the "draw dot state".
virtual void	drawName ()
	Draw the name we want to use when selecting this in a deluge::gui::menu_item::Submenu to the 7SEG.
virtual std::string_view	getName () const
	Get the actual name for use on OLED for deluge::gui::menu_item::Submenu s.
virtual bool	isRelevant (ModControllableAudio *modControllable, int32_t whichThing)
	Check if this MenuItem should show up in a containing deluge::gui::menu_item::Submenu.
virtual bool	shouldEnterSubmenu ()
	Check if selecting this menu item (with select encoder) should enter a submenu.
virtual int32_t	getSubmenuItemTypeRenderLength ()
	Handle rendering of submenu item types.
virtual int32_t	getSubmenuItemTypeRenderIconStart ()
virtual void	renderSubmenuItemTypeForOled (int32_t yPixel)
virtual void	setupNumberEditor ()
virtual void	updateAutomationViewParameter ()
virtual void	getColumnLabel (StringBuf &label)
virtual bool	showColumnLabel () const
	Show a label for the parameter in Horizontal menu.
virtual bool	allowToBeginSessionFromHorizontalMenu ()
	Allow entering menu session by selecting the menu item twice in Horizontal menu.
virtual void	getNotificationValue (StringBuf &valueBuf)
	Get the parameter value string to show in the popup.

Protected Member Functions
virtual void	renderMenuItems (std::span< MenuItem * > items, const MenuItem *currentItem)
virtual Paging &	preparePaging (std::span< MenuItem * > items, const MenuItem *currentItem)
virtual void	handleInstrumentButtonPress (std::span< MenuItem * > visiblePageItems, const MenuItem *previous, int32_t pressedButtonPosition)
virtual void	selectMenuItem (int32_t pageNumber, int32_t itemPos)
virtual void	switchVisiblePage (int32_t direction)
virtual void	switchHorizontalMenu (int32_t direction, std::span< HorizontalMenu *const > chain, bool forceSelectFirstItem=false)

Protected Attributes
Paging	paging
Layout	layout {DYNAMIC}
int32_t	lastSelectedItemPosition {kNoSelection}
std::optional< std::span< HorizontalMenu *const > >	chain {std::nullopt}
Protected Attributes inherited from deluge::gui::menu_item::Submenu
uint32_t	initial_index_ = 0
deluge::vector< MenuItem * >	items
decltype(items) ::iterator	current_item_

Private Member Functions
void	updateSelectedMenuItemLED (int32_t itemNumber) const
	When updating the selected horizontal menu item, you need to refresh the lit instrument LED's.
double	calcNextKnobSpeed (int8_t offset)

Static Private Member Functions
static void	handleItemAction (MenuItem *menuItem)
static void	displayNotification (MenuItem *menuItem)
static void	renderPageCounters (const Paging &paging)
static void	renderColumnLabel (MenuItem *menuItem, int32_t labelY, int32_t slotStartX, int32_t slotWidth, bool isSelected)

Private Attributes
double	currentKnobSpeed {0.0}

Friends
class	HorizontalMenuCombined

Additional Inherited Members
static void	drawItemsForOled (std::span< std::string_view > options, int32_t selectedOption, int32_t offset=0)
	Internal helper which can draw the standard deluge::gui::menu_item::Submenu layout.
deluge::l10n::String	title
	Can get overridden by getTitle(). Actual max num chars for OLED display is 14.
const deluge::l10n::String	name
	Default name for use on OLED for deluge::gui::menu_item::Submenu s.
deluge::gui::menu_item::Submenu *	parent {nullptr}

Member Function Documentation

◆ beginSession()

void deluge::gui::menu_item::HorizontalMenu::beginSession ( MenuItem * navigatedBackwardFrom )

overridevirtual

Begin an editing session with this menu item.

Should make sure the menu's internal state matches the system and redraw the display.

Reimplemented from MenuItem.

Reimplemented in deluge::gui::menu_item::HorizontalMenuCombined, deluge::gui::menu_item::submenu::ReverbSidechain, and deluge::gui::menu_item::submenu::Sidechain.

◆ buttonAction()

ActionResult deluge::gui::menu_item::HorizontalMenu::buttonAction	(	hid::Button	b,
		bool	on,
		bool	inCardRoutine )

overridevirtual

Handle an arbitrary button.

The returned result is forwarded up the View stack, so returning ActionResult::DEALT_WITH will suppress buttons going to the current View.

This is called with (b == SELECT_ENC && on) immediately after the menu is entered, or after selectButtonPress is called and returns NO_NAVIGATION.

Reimplemented from MenuItem.

◆ endSession()

void deluge::gui::menu_item::HorizontalMenu::endSession ( )

overridevirtual

when exiting a horizontal menu, turn off the LED's and reset selected horizontal menu item position so that next time you open a horizontal menu, it refreshes the LED for the selected horizontal menu item

Reimplemented from MenuItem.

◆ renderingStyle()

Submenu::RenderingStyle deluge::gui::menu_item::HorizontalMenu::renderingStyle ( ) const

overridevirtual

Reimplemented from deluge::gui::menu_item::Submenu.

◆ renderOLED()

void deluge::gui::menu_item::HorizontalMenu::renderOLED ( )

overridevirtual

Root rendering routine for OLED.

If you want a title, you probably want to override drawPixelsForOled instead or you will need to paint the title yourself. Uses the title from getTitle() when rendering.

Reimplemented from MenuItem.

◆ selectEncoderAction()

void deluge::gui::menu_item::HorizontalMenu::selectEncoderAction ( int32_t offset )

overridevirtual

Handle select encoder movement.

Child classes which override this should be careful to handle offsets larger than 1, as holding shift and scrolling will increase them.

Reimplemented from MenuItem.

Reimplemented in deluge::gui::menu_item::HorizontalMenuCombined.

The documentation for this class was generated from the following files:

src/deluge/gui/menu_item/horizontal_menu.h
src/deluge/gui/menu_item/horizontal_menu.cpp
