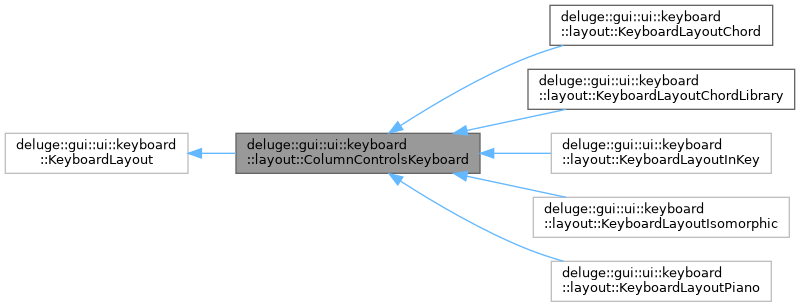

Inheritance diagram for deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard:

[legend]

Collaboration diagram for deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard:

[legend]

Public Member Functions
void	enableNote (uint8_t note, uint8_t velocity)

void	evaluatePads (PressedPad presses[kMaxNumKeyboardPadPresses]) override
	Handle input pad presses.

void	handleVerticalEncoder (int32_t offset) override
	Shift state not supplied since that function is already taken.

void	handleHorizontalEncoder (int32_t offset, bool shiftEnabled, PressedPad presses[kMaxNumKeyboardPadPresses], bool encoderPressed=false) override
	Will be called with offset 0 to recalculate bounds on clip changes.

bool	verticalEncoderHandledByColumns (int32_t offset)

bool	horizontalEncoderHandledByColumns (int32_t offset, bool shiftEnabled)

ColumnControlFunction	nextControlFunction (ColumnControlFunction cur, ColumnControlFunction skip)

ColumnControlFunction	prevControlFunction (ColumnControlFunction cur, ColumnControlFunction skip)

ColumnControlFunction	stepControlFunction (int32_t offset, ColumnControlFunction cur, ColumnControlFunction skip)

void	renderSidebarPads (RGB image[][kDisplayWidth+kSideBarWidth]) override

void	checkNewInstrument (Instrument *newInstrument) override

void	renderColumnBeatRepeat (RGB image[][kDisplayWidth+kSideBarWidth], int32_t column)

Public Member Functions inherited from deluge::gui::ui::keyboard::KeyboardLayout
virtual void	precalculate ()=0
	This function is called on visibility change and if colour offset changes.

virtual void	renderPads (RGB image[][kDisplayWidth+kSideBarWidth])
	Handle output.

virtual l10n::String	name ()=0

virtual bool	supportsInstrument ()
	This currently includes Synth, MIDI and CV.

virtual bool	supportsKit ()

virtual RequiredScaleMode	requiredScaleMode ()

virtual NotesState &	getNotesState ()

Public Attributes
int8_t	leftColHeld = -1

int8_t	rightColHeld = -1

Public Attributes inherited from deluge::gui::ui::keyboard::KeyboardLayout
uint8_t	velocity = 64

Protected Member Functions
virtual bool	allowSidebarType (ColumnControlFunction sidebarType)

Protected Member Functions inherited from deluge::gui::ui::keyboard::KeyboardLayout
bool	isKit ()

int16_t	getRootNote ()
	Song root note can be in any octave, layouts get the normalized one.

bool	getScaleModeEnabled ()

uint8_t	getScaleNoteCount ()

NoteSet &	getScaleNotes ()

uint8_t	getDefaultVelocity ()

int32_t	getLowestClipNote ()

int32_t	getHighestClipNote ()

RGB	getNoteColour (uint8_t note)

NoteHighlightIntensity &	getHighlightedNotes ()

NoteHighlightIntensity &	getNornsNotes ()

KeyboardState &	getState ()

Additional Inherited Members
Protected Attributes inherited from deluge::gui::ui::keyboard::KeyboardLayout
NotesState	currentNotesState

Member Function Documentation

◆ checkNewInstrument()

void deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard::checkNewInstrument ( Instrument * newInstrument )

overridevirtual

Reimplemented from deluge::gui::ui::keyboard::KeyboardLayout.

◆ evaluatePads()

void deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard::evaluatePads ( PressedPad presses[kMaxNumKeyboardPadPresses] )

overridevirtual

Handle input pad presses.

Implements deluge::gui::ui::keyboard::KeyboardLayout.

Reimplemented in deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, and deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano.

◆ handleHorizontalEncoder()

void deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard::handleHorizontalEncoder	(	int32_t	offset,
		bool	shiftEnabled,
		PressedPad	presses[kMaxNumKeyboardPadPresses],
		bool	encoderPressed = false )
