deluge::gui::ui::keyboard::KeyboardLayout Class Reference

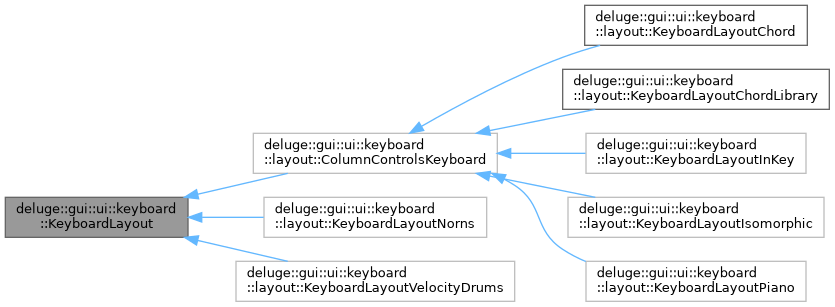

Inheritance diagram for deluge::gui::ui::keyboard::KeyboardLayout:

Collaboration diagram for deluge::gui::ui::keyboard::KeyboardLayout:

Public Member Functions
virtual void	evaluatePads (PressedPad presses[kMaxNumKeyboardPadPresses])=0
	Handle input pad presses.
virtual void	handleVerticalEncoder (int32_t offset)=0
	Shift state not supplied since that function is already taken.
virtual void	handleHorizontalEncoder (int32_t offset, bool shiftEnabled, PressedPad presses[kMaxNumKeyboardPadPresses], bool encoderPressed=false)=0
	Will be called with offset 0 to recalculate bounds on clip changes.
virtual void	precalculate ()=0
	This function is called on visibility change and if colour offset changes.
virtual void	renderPads (RGB image[][kDisplayWidth+kSideBarWidth])
	Handle output.
virtual void	renderSidebarPads (RGB image[][kDisplayWidth+kSideBarWidth])
virtual l10n::String	name ()=0
virtual bool	supportsInstrument ()
	This currently includes Synth, MIDI and CV.
virtual bool	supportsKit ()
virtual RequiredScaleMode	requiredScaleMode ()
virtual bool	supportsScale (Scale scale)
virtual NotesState &	getNotesState ()
virtual void	checkNewInstrument (Instrument *newInstrument)

Public Attributes
uint8_t	velocity = 64

Protected Member Functions
bool	isKit ()
int16_t	getRootNote ()
	Song root note can be in any octave, layouts get the normalized one.
bool	getScaleModeEnabled ()
uint8_t	getScaleNoteCount ()
NoteSet &	getScaleNotes ()
uint8_t	getDefaultVelocity ()
int32_t	getLowestClipNote ()
int32_t	getHighestClipNote ()
RGB	getNoteColour (uint8_t note)
NoteHighlightIntensity &	getHighlightedNotes ()
NoteHighlightIntensity &	getNornsNotes ()
KeyboardState &	getState ()

Protected Attributes
NotesState	currentNotesState

Member Function Documentation

evaluatePads()

virtual void deluge::gui::ui::keyboard::KeyboardLayout::evaluatePads ( PressedPad presses[kMaxNumKeyboardPadPresses] )

pure virtual

Handle input pad presses.

Implemented in deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard, deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, deluge::gui::ui::keyboard::layout::KeyboardLayoutNorns, deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano, and deluge::gui::ui::keyboard::layout::KeyboardLayoutVelocityDrums.

handleHorizontalEncoder()

virtual void deluge::gui::ui::keyboard::KeyboardLayout::handleHorizontalEncoder ( int32_t offset, bool shiftEnabled, PressedPad presses[kMaxNumKeyboardPadPresses], bool encoderPressed = false )

pure virtual

Will be called with offset 0 to recalculate bounds on clip changes.

Implemented in deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard, deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, deluge::gui::ui::keyboard::layout::KeyboardLayoutNorns, deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano, and deluge::gui::ui::keyboard::layout::KeyboardLayoutVelocityDrums.

handleVerticalEncoder()

virtual void deluge::gui::ui::keyboard::KeyboardLayout::handleVerticalEncoder ( int32_t offset )

pure virtual

Shift state not supplied since that function is already taken.

Implemented in deluge::gui::ui::keyboard::layout::ColumnControlsKeyboard, deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, deluge::gui::ui::keyboard::layout::KeyboardLayoutNorns, deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano, and deluge::gui::ui::keyboard::layout::KeyboardLayoutVelocityDrums.

precalculate()

virtual void deluge::gui::ui::keyboard::KeyboardLayout::precalculate ( )

pure virtual

This function is called on visibility change and if colour offset changes.

Implemented in deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, deluge::gui::ui::keyboard::layout::KeyboardLayoutNorns, deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano, and deluge::gui::ui::keyboard::layout::KeyboardLayoutVelocityDrums.

renderPads()

virtual void deluge::gui::ui::keyboard::KeyboardLayout::renderPads ( RGB image[][kDisplayWidth+kSideBarWidth] )

inlinevirtual

Handle output.

Reimplemented in deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, deluge::gui::ui::keyboard::layout::KeyboardLayoutNorns, deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano, and deluge::gui::ui::keyboard::layout::KeyboardLayoutVelocityDrums.

supportsInstrument()

virtual bool deluge::gui::ui::keyboard::KeyboardLayout::supportsInstrument ( )

inlinevirtual

This currently includes Synth, MIDI and CV.

Reimplemented in deluge::gui::ui::keyboard::layout::KeyboardLayoutChord, deluge::gui::ui::keyboard::layout::KeyboardLayoutChordLibrary, deluge::gui::ui::keyboard::layout::KeyboardLayoutInKey, deluge::gui::ui::keyboard::layout::KeyboardLayoutIsomorphic, deluge::gui::ui::keyboard::layout::KeyboardLayoutNorns, deluge::gui::ui::keyboard::layout::KeyboardLayoutPiano, and deluge::gui::ui::keyboard::layout::KeyboardLayoutVelocityDrums.

supportsScale()

virtual bool deluge::gui::ui::keyboard::KeyboardLayout::supportsScale ( Scale scale )

inlinevirtual

Whether this layout can operate with the given scale. Layouts that only support certain scales (e.g. the chord keyboard) override this so the scale-mode sidebar can avoid selecting a scale the layout can't handle.

Reimplemented in deluge::gui::ui::keyboard::layout::KeyboardLayoutChord.

---

The documentation for this class was generated from the following file:

• src/deluge/gui/ui/keyboard/layout.h
