TimelineView Class Reference

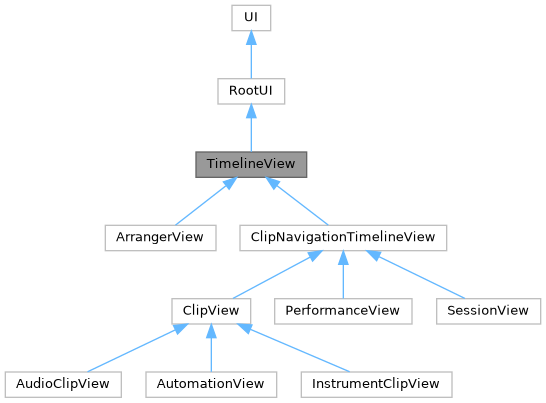

Inheritance diagram for TimelineView:

Collaboration diagram for TimelineView:

Public Member Functions
void	scrollFinished () override
TimelineView *	toTimelineView () final
	Convert this view to a TimelineView.
virtual uint32_t	getMaxZoom ()=0
virtual bool	calculateZoomPinSquares (uint32_t oldScroll, uint32_t newScroll, uint32_t newZoom, uint32_t oldZoom)
virtual uint32_t	getMaxLength ()=0
virtual bool	setupScroll (uint32_t oldScroll)
virtual int32_t	getNavSysId () const
virtual void	tellMatrixDriverWhichRowsContainSomethingZoomable ()
ActionResult	buttonAction (deluge::hid::Button b, bool on, bool inCardRoutine) override
void	displayZoomLevel (bool justPopup=false)
ActionResult	horizontalEncoderAction (int32_t offset) override
void	displayScrollPos ()
void	displayNumberOfBarsAndBeats (uint32_t number, uint32_t quantization, bool countFromOne, char const *tooLongText)
void	initiateXScroll (uint32_t newXScroll, int32_t numSquaresToScroll=kDisplayWidth)
bool	zoomToMax (bool inOnly=false)
void	initiateXZoom (int32_t zoomMagnitude, int32_t newScroll, uint32_t oldZoom)
void	midiLearnFlash () override
bool	scrollRightToEndOfLengthIfNecessary (int32_t maxLength)
bool	scrollLeftIfTooFarRight (int32_t maxLength)
void	tripletsButtonPressed ()
void	setTripletsLEDState ()
int32_t	getPosFromSquare (int32_t square, int32_t localScroll=-1) const
int32_t	getPosFromSquare (int32_t square, int32_t xScroll, uint32_t xZoom) const
int32_t	getSquareFromPos (int32_t pos, bool *rightOnSquare=nullptr, int32_t localScroll=-1)
int32_t	getSquareFromPos (int32_t pos, bool *rightOnSquare, int32_t xScroll, uint32_t xZoom)
int32_t	getSquareEndFromPos (int32_t pos, int32_t localScroll=-1)
bool	isSquareDefined (int32_t square, int32_t xScroll=-1)
bool	isSquareDefined (int32_t square, int32_t xScroll, uint32_t xZoom)
bool	inTripletsView () const
Public Member Functions inherited from RootUI
virtual bool	getAffectEntire ()
bool	canSeeViewUnderneath () final
virtual bool	supportsTriplets () const
virtual void	notifyPlaybackBegun ()
virtual uint32_t	getGreyedOutRowsNotRepresentingOutput (Output *output)
virtual void	noteRowChanged (InstrumentClip *clip, NoteRow *noteRow)
virtual void	playbackEnded ()
virtual void	clipNeedsReRendering (Clip *clip)
virtual void	sampleNeedsReRendering (Sample *sample)
Public Member Functions inherited from UI
virtual ActionResult	padAction (int32_t x, int32_t y, int32_t velocity)
virtual ActionResult	verticalEncoderAction (int32_t offset, bool inCardRoutine)
virtual void	selectEncoderAction (int8_t offset)
virtual void	modEncoderAction (int32_t whichModEncoder, int32_t offset)
virtual void	modButtonAction (uint8_t whichButton, bool on)
virtual void	modEncoderButtonAction (uint8_t whichModEncoder, bool on)
virtual void	graphicsRoutine ()
virtual ActionResult	timerCallback ()
virtual bool	opened ()
virtual void	focusRegained ()
virtual void	displayOrLanguageChanged ()
virtual ClipMinder *	toClipMinder ()
virtual bool	pcReceivedForMidiLearn (MIDICable &fromCable, int32_t channel, int32_t program)
virtual bool	noteOnReceivedForMidiLearn (MIDICable &fromCable, int32_t channel, int32_t note, int32_t velocity)
virtual bool	getGreyoutColsAndRows (uint32_t *cols, uint32_t *rows)
virtual bool	renderMainPads (uint32_t whichRows=0, RGB image[][kDisplayWidth+kSideBarWidth]=nullptr, uint8_t occupancyMask[][kDisplayWidth+kSideBarWidth]=nullptr, bool drawUndefinedArea=true)
virtual bool	renderSidebar (uint32_t whichRows=0, RGB image[][kDisplayWidth+kSideBarWidth]=nullptr, uint8_t occupancyMask[][kDisplayWidth+kSideBarWidth]=nullptr)
virtual bool	exitUI ()
	returns whether a UI exited
void	close ()
virtual void	renderOLED (deluge::hid::display::oled_canvas::Canvas &canvas)=0
virtual UI *	getUI ()
	When entering a UI (e.g. automationView), you may wish to open a different UI based on the current context (e.g. automationViewArranger, automationViewAudioClip, etc.)
virtual UIType	getUIType ()=0
	What type of UI is this? e.g. UIType::ARRANGER.
virtual UIType	getUIContextType ()
	What context does UI relate to? e.g. UIType could be AUTOMATION but UIContextType could be ARRANGER, AUDIO CLIP, INSTRUMENT CLIP.
virtual UIModControllableContext	getUIModControllableContext ()
	What mod controllable context is this UI using? E.g. Automation View can use the Song ModControllable when in Arranger but the Clip ModControllable when in a Clip.

Private Attributes
uint32_t	delayHorizontalZoomUntil = 0
	Used when scrolling horizontally to briefly catch on clip's max zoom.
int8_t	delayHorizontalZoomMagnitude

Additional Inherited Members
Public Attributes inherited from UI
bool	oledShowsUIUnderneath
Protected Attributes inherited from UI
UIType	uiType

Member Function Documentation

buttonAction()

ActionResult TimelineView::buttonAction ( deluge::hid::Button b, bool on, bool inCardRoutine )

overridevirtual

Reimplemented from UI.

getMaxLength()

virtual uint32_t TimelineView::getMaxLength ( )

pure virtual

Implemented in PerformanceView.

getMaxZoom()

virtual uint32_t TimelineView::getMaxZoom ( )

pure virtual

Implemented in PerformanceView.

horizontalEncoderAction()

ActionResult TimelineView::horizontalEncoderAction ( int32_t offset )

overridevirtual

Reimplemented from UI.

midiLearnFlash()

void TimelineView::midiLearnFlash ( )

overridevirtual

Reimplemented from RootUI.

scrollFinished()

void TimelineView::scrollFinished ( )

overridevirtual

Reimplemented from UI.

toTimelineView()

TimelineView * TimelineView::toTimelineView ( )

inlinefinalvirtual

Convert this view to a TimelineView.

Returns

nullptr if the view is not a TimelineView, otherwise this cast to a TimelineView

Reimplemented from UI.

Member Data Documentation

delayHorizontalZoomMagnitude

int8_t TimelineView::delayHorizontalZoomMagnitude

private

Horizontal scroll is only delayed in the direction that clip's max zoom was crossed in. This is the direction (-1 or +1).

---

The documentation for this class was generated from the following files:

• src/deluge/gui/views/timeline_view.h
• src/deluge/gui/views/timeline_view.cpp
